Keyboard Class Reference

Example InputDevice which takes input in from a keyboard. Useful for testing without any other input devices. More...

#include <Keyboard.h>

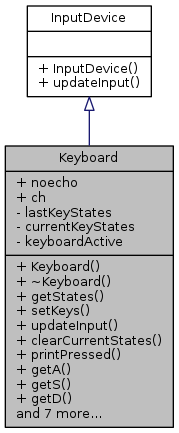

Inheritance diagram for Keyboard:

Collaboration diagram for Keyboard:

Public Member Functions
	Keyboard ()
	Construct a new keyboard object. More...
	~Keyboard ()
key_states	getStates ()
	getter method for key_states. More...
void	setKeys ()
	reads one character from stdin and updates coresponding key state (if one occured) More...
void	updateInput ()
	defintion of <class>Input</class> pure virtual function. Updates the keyboard input devices memory states from implemented keyboard input from user. E.g. A key has been pressed or not. More...
void	clearCurrentStates ()
	clear the current key state variables More...
void	printPressed ()
	Helper method, prints current keys registered as pressed. More...
bool	getA ()
	Getter method for private A key state. More...
bool	getS ()
	Getter method for private S key state. More...
bool	getD ()
	Getter method for private D key state. More...
bool	getW ()
	Getter method for private W key state. More...
bool	getX ()
	Getter method for private X key state. More...
bool	getQ ()
	Getter method for private Q key state. More...
int	kbhit ()
	Check if keyboard has been hit - is stdin active. More...
void	nonblock (int state)
	Configure stdin to be nonblocking to rest of program. More...
int	getKeyboardActive ()
	getter method for keyboard active flag, set by kbhit function. More...
void	setKeyboardActive (int value)
	setter method for keyboard active flag, set by kbhit function. More...
Public Member Functions inherited from InputDevice
	InputDevice ()

Public Attributes
struct termios original	noecho
	Termios structs for turning on and off terminal echo. More...
char	ch

Private Attributes
key_states	lastKeyStates = {false, false, false, false, false, false}
key_states	currentKeyStates = {false, false, false, false, false, false}
int	keyboardActive

Detailed Description

Example InputDevice which takes input in from a keyboard. Useful for testing without any other input devices.

Definition at line 36 of file Keyboard.h.

Constructor & Destructor Documentation

Keyboard::Keyboard

(

)

Construct a new keyboard object.

• Note: Designer must implement specifc keyboard keys they wish to use. Add an entry to key_states struct, last and current key State object and edit set Keys and creat a getter method.

Definition at line 4 of file Keyboard.cpp.

Keyboard::~Keyboard

(

)

Definition at line 17 of file Keyboard.cpp.

Member Function Documentation

void Keyboard::clearCurrentStates

(

)

clear the current key state variables

Definition at line 99 of file Keyboard.cpp.

bool Keyboard::getA

(

)

Getter method for private A key state.

Definition at line 106 of file Keyboard.cpp.

bool Keyboard::getD

(

)

Getter method for private D key state.

Definition at line 113 of file Keyboard.cpp.

int Keyboard::getKeyboardActive

(

)

getter method for keyboard active flag, set by kbhit function.

Definition at line 153 of file Keyboard.cpp.

bool Keyboard::getQ

(

)

Getter method for private Q key state.

Definition at line 122 of file Keyboard.cpp.

bool Keyboard::getS

(

)

Getter method for private S key state.

Definition at line 110 of file Keyboard.cpp.

key_states Keyboard::getStates

(

)

getter method for key_states.

Definition at line 72 of file Keyboard.cpp.

bool Keyboard::getW

(

)

Getter method for private W key state.

Definition at line 116 of file Keyboard.cpp.

bool Keyboard::getX

(

)

Getter method for private X key state.

Definition at line 119 of file Keyboard.cpp.

int Keyboard::kbhit

(

)

Check if keyboard has been hit - is stdin active.

Definition at line 125 of file Keyboard.cpp.

void Keyboard::nonblock

(

int

state

)

Configure stdin to be nonblocking to rest of program.

Definition at line 135 of file Keyboard.cpp.

void Keyboard::printPressed

(

)

Helper method, prints current keys registered as pressed.

Definition at line 77 of file Keyboard.cpp.

void Keyboard::setKeyboardActive

(

int

value

)

setter method for keyboard active flag, set by kbhit function.

Definition at line 156 of file Keyboard.cpp.

void Keyboard::setKeys

(

)

reads one character from stdin and updates coresponding key state (if one occured)

set last Key states

Definition at line 31 of file Keyboard.cpp.

void Keyboard::updateInput ( )

virtual

defintion of <class>Input</class> pure virtual function. Updates the keyboard input devices memory states from implemented keyboard input from user. E.g. A key has been pressed or not.

Implements InputDevice.

Definition at line 22 of file Keyboard.cpp.

Member Data Documentation

char Keyboard::ch

Definition at line 114 of file Keyboard.h.

key_states Keyboard::currentKeyStates = {false, false, false, false, false, false}

private

Definition at line 39 of file Keyboard.h.

int Keyboard::keyboardActive

private

Definition at line 40 of file Keyboard.h.

key_states Keyboard::lastKeyStates = {false, false, false, false, false, false}

private

Definition at line 38 of file Keyboard.h.

struct termios original Keyboard::noecho

Termios structs for turning on and off terminal echo.

Definition at line 113 of file Keyboard.h.

---

The documentation for this class was generated from the following files:

• Refactor/src/apps/Keyboard.h
• Refactor/src/apps/Keyboard.cpp
